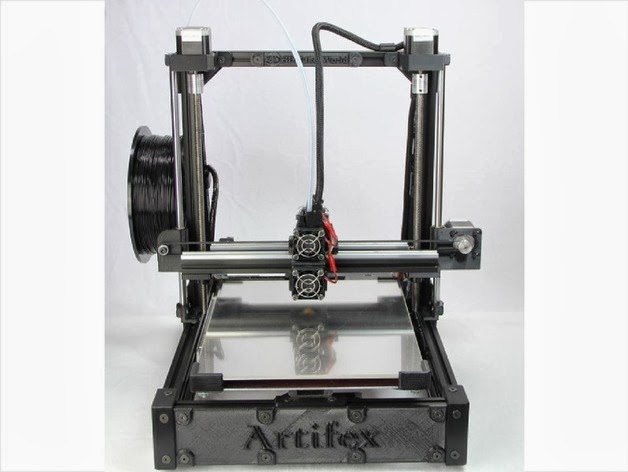

Artifex 3D Printer




























Artifex technical specifications:
Print technology: Fused Filament Fabrication
Build Space
- W × D × H: 230 × 310 × 190 mm (9 × 12.2 × 7.5 in)
- Volume: 13,547 cm3 (827 in3, 2X the volume of MakerBot® ReplicatorTM 2)
(Note: MakerBot and Replicator are registered marks or trademarks of MakerBot Industries, LLC.)
- Height extendable to 220 mm (8.7 in) in the middle of X-axis for additional 198 × 310 × 30 mm (1,841 cm3, or 112 in3) space
Layer resolution: 0.05 mm (0.002 in)
Nozzle diameter: 0.35 mm (0.014 in)
Print materials: 1.75 mm PLA and ABS
Speed
- Top print speed: 150 mm/sec (infill or inner perimeter), 100 mm/sec (outer perimeter)
- Top non-print speed: 300 mm/sec
Acceleration
- Top print acceleration: 3000 mm/sec2 (infill), 1500 mm/sec2 (perimeter)
- Top non-print acceleration: 300 mm/sec2
Electronical
Power requirements:  110/220 VAC
Electronics: RAMBo
Hot-end: MakerGear hot-end with 0.35mm nozzle
Heated bed: 24V 200W heated bed up to 120°C
Cooling fans: Three 24V cooling fans for filament drive, print surface, and electronics
Mechanical
Overall dimension: W × D × H: 484 × 482 × 480 mm (19 × 19 × 19 in)
Weight: 11 Kg (24 lb)
Frame: Aluminum extrusions
Motion
- X- and Y-axis: linear rails and GT2 belts
- Z-axis: precision linear shafting and ACME leadscrews
Printed parts:  Black ABS
Artifex is priced 1895 USD for fully assembled printer.

Main features:
Wire management
We know you do not like messy wiring. Neither do we. That was the reason why we spent tons of time and effort to manage those wires. We even went back to change the machine design multiple times in order to get a better routing option. Finally, we worked out a solution which can meet our standard to be part of a "neat machine". Hope you will like it as we do.

HBP Corner
No binder clips, please.
Binder clips have become the typical solution in most desktop 3D printers to hold its print surface to the build platform. Although they work fine for the purpose of holding the print surface, they waste otherwise usable print area on the edges,  interfere with the extruder nozzle, and give an "unfinished" look to your printer. The Artifex 3D Printer comes with newly designed HBP (Heated Build Platform) corners, which have securing slots to hold the glass plate and the heat spreader in place. The HBP corners can be easily slided out to release the glass top if you need to access the glass for maintenance.

Adjustable Y-axis Carriage
Less vibration means faster and quieter printing
In the original MendelMax 2.0 design, large vibration was observed at high printing speed. Such vibration created lots of noise and also caused quality problems in the finished parts. Majority of such vibration was caused by the large gap between the Y-axis rail and its catriages. The 3DMakerWorld Artifex 3D Printer uses upgraded Y-axis catriages with adjustable clearance capability. By reducing the gap between the Y-axis rail and the catriages, the 3DMakerWorld Artifex 3D Printer can achieve quiet and high-quality printing even at high speed.

Three-point bed leveling system
If you have ever tried both three-point and four-point bed leveling systems, you certainly know how much easier the bed leveling could be with a three-point leveling system. Yes, the 3DMakerWorld Artifex 3D Printer comes with a three-point bed leveling system in place to ease the leveling process.

Adjustable Z-Axis End-Stop Trigger
Adjustable Z-axis zeroing
As you continue advancing into the world of 3D printing, you will find the need to fine tune the distance between the extruder nozzle and the print surface. Such process is called Z-axis zeroing. The Artifex 3D Printer provides the adjustable Z-axis zeroing capability. It uses an adjustable Z-axis end-stop trigger to precisely adjust the nozzle height without messing up the bed level.

HBP cable strain relief
The HBP heater moves along the Y-axis with the build platform. The joint between the cable of HBP heater and the build platform is often a weak point due to the strain applied during continuous movement. A strain relief is built into the Artifex 3D Printer to secure and support the cable of HBP heater.

Enclosed electronics with dedicated cooling fan
The electronics board on the Artifex 3D Printer is completely enclosed from top to bottom for safe operation and easy maintainence. The electronics case also contains a dedicated cooling fan to cool off the electronic components during printing.

24V Power Supply with Rear Panel
24V power supply with convenient power switch
The 3DMakerWorld Artifex 3D Printer uses a 24V power supply to provide better heating capability on heated bed, and to improve motor performance at high printing speed. For the purpose of safety and aesthetics, all wire connectors are enclosed by top/bottom covers and back panel. An easy-reach power switch is installed on the power panel to switch on and off the power to the printer conveniently.

http://www.thingiverse.com/thing:214140

http://www.3dmakerworld.com/artifex

Mini Kossel Delta configuration DIY 3d printer

Kossel design and Mini Kosseel are often around, for some reason I forgot to make a post about it. So here it is ...




Design Goals from the Kossel page:
  • Zero backlash.
  • type: Delta printer
  • Speed: 320 mm/s in all 3 directions.
  • Resolution: 100 steps/mm in all 3 directions.
  • Repeatability: better than 0.03 mm (30 micron)
  • Build volume: cylindrical, 170mm diameter, 240mm height.
  • Footprint: triangle, 300 mm width (240mm OpenBeam + printed corners).
  • Frame height: 600 mm.
  • Print surface: unheated round glass, doesn't move.
  • Mass of end effector with hotend: less than 50 grams.
  • Simplicity: fewer than 200 parts.
  • Hardware cost: less than $600 USD.
  • Fully automatic print surface level calibration (autoleveling).

https://github.com/jcrocholl/kossel

http://reprap.org/wiki/Kossel

http://deltabot.tumblr.com/

Build manual:

http://www.builda3dprinter.eu/build-manuals/kossel_mini/

Here is the demonstration of the autolevel feature:

http://diy3dprinting.blogspot.com/2013/05/automatic-bed-leveling-on-mini-kossel.html
http://diy3dprinting.blogspot.com/2013/06/mini-kossel-prints-on-unheated-glass.html




Dec 30, 2013

Appropedia MOST Delta 3d printer



Another Rostock derived Delta 3d printer with very detailed build guide.

From project page:
The MOST Delta printer is RepRap derived from the Rostock printer with the following design goals:
  • Simple build process
  • Safe to operate
  • True to RepRap
  • Maximize value
  • Maximize rigidity
  • Aesthetically pleasing (or at least neutral)
  • All PLA printed parts
  • Excellent print performance
The design utilizes plywood linking boards cut to a length that yields a desired printer radius when attached to the printed apexes. This simplifies assembly while helping to assure that printer dimensions are fixed, stable and reasonably well known. It also improves flexibility as the print area in the x-y plane can be changed simply by replacing the boards with boards of a different length. The delta design is inherently simpler to assemble as compared to virtually all it's Cartesian counterparts; this design can easily be built within a day by one person having properly prepared parts.
The design uses a 12v 5A power brick instead of the popular 12v power supplies having mains connections relatively exposed, a relative safety issue, particularly when children are present. The power supply is roughly equivalent to those found with many inkjet printers.
As many printed parts are used in the design as are practical, including printed pulleys. This in large part drove the decision to use open T5 timing belts for the drive, which also makes the design more flexible as the length of the guide rods doesn't need to be based upon the length of an off-the-shelf continuous belt.
Cost considerations drove decisions regarding everything from printer capabilities (as shown, prints PLA only) to guide rod material and length (two six foot lengths of 8mm drill steel are required, producing no waste). A Melzi controller is used as it provides all the necessary features as well as SD card support and reasonable expansion options. The power supply is a fraction of the cost of that required for powering a heated bed.
Printed apexes are very robust, probably overkill, and along with the plywood components and ample fasteners produce a very rigid structure. The printer has proven to transport very well (and can even be seat belted) with no adjustment needed prior to printing at its destination.
The end effector is actively cooled allowing for a unitized effector/hot end mount printed in PLA. The hot end is recessed within the end effector, maximizing z-axis travel and also providing for some print cooling.
Printing performance has been very good as has been the experience of printing with this design. Much less user intervention has been required as compared to experience with Cartesian RepRaps.
Printer capabilities/statistics
  • Print media: PLA only (heated bed can be added, expanding media options)
  • Filament diameter: 1.75mm
  • Nozzle diameter: 0.5mm (can be changed)
  • Print volume: ~250mm radius (with 240mm long linking boards) 270mm high
  • Melzi print controller w/ integrated SD card reader
  • Airtripper's Bowden Extruder

Appropedia page with very detailed build guide:

http://www.appropedia.org/Delta_Build_Overview:MOST

Github file repository:

https://github.com/mtu-most/most-delta


Appropedia is very interesting wiki with many detailed open source DIY projects woth looking at.
Appropedia is the site for collaborative solutions in sustainability, poverty reduction and international development through the use of sound principles and appropriate technology and the sharing of wisdom and project information.

I'll post about more interesting Appropedia projects soon.

It can also be stacked in a tower configuration as someone successfully did here with 4 deltas stacked:

http://diy3dprinting.blogspot.com/2013/12/delta4-printer-with-four-delta-printers.html


MOST is Pearce Research Group at Michigan Tech in Open Sustainability Technology.
They have many cool stuff here: http://www.appropedia.org/MOST

Dec 29, 2013

Stratum Networks Delta Robot 3d printer

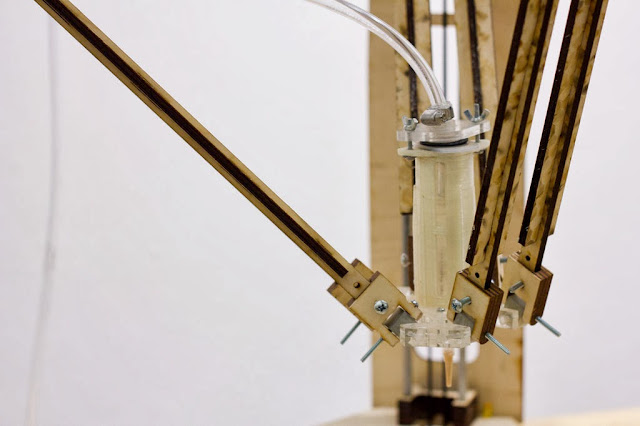

Stratum Networks Delta is a student project of clay printing Delta 3d printer. Design is published on Instructables and the printer is made with air compressor powered clay extruder mounted on lasercut plywood and acrylic frame.
The output clay objects look rough but the precision can probably be improved.





Project developers, Max Sanchez and Taylor Fulton, are architecture students at California College of the Arts. This project was based in a studio course called "Creative Architecture Machines" taught by Jason Kelly Johnson and Michael Shiloh.

Detailed build guide and all the files needed can be found at:

http://www.instructables.com/id/Stratum-Networks-Delta-Robot/?ALLSTEPS




They mixed the clay for this 3d printer out of:
  • EPK
  • CUSTER FELDSPAR
  • SILICA #5 325mesh
  • KENTUCKY BALL CLAY
  • DARVAN: Used as a deflocculant. A few drops of the fluid will make the clay compound more like a slip.
  • GROG: reduces shrinkage
  • WATER


Schematics of  air compressor driven clay extruder













































Here you can find detailed video from more precise ceramic clay delta printer:

http://diy3dprinting.blogspot.com/2013/06/delta-ceramic-printer-by-jonathan-keep.html

http://diy3dprinting.blogspot.com/2013/11/operating-ceramic-delta-printer-video.html

Dec 28, 2013

Custom Delta 3d printer built from Ikea furniture pieces

Turi Cacciatore made this Rostock based custom Delta 3d printer with frame made from Ikea furniture pieces. He used carbon archery arrows for delta arms. Nice work!



Source with detailed information and building guide:

http://turicacciatore.tumblr.com/post/69085105229/making-my-3d-printer



Custom Delta frame made from cut Ikea pieces pictured above

You can see another 3d printer from hacked Ikea furniture pieces, the Ikea RepRap, here:

http://diy3dprinting.blogspot.com/2013/11/diy-3d-printers-made-from-wood.html

Dec 26, 2013

New 3d printers from India: Brahma3 Anvil and Mi3D Pro X9

More printers are coming up in India. 3d printers are emerging everywhere. Go India Go!

Brahma3 Anvil






























Technical specifications of Brahma3 Anvil:
  • Build Volume: 240 x 240 x 240 mm
  • No. of Extruders: 1
  • Nozzle Diameter: 0.4 mm
  • Maximum Extruder Temperature: 350°c
  • Hot End: All metal hot end
  • Heated Bed with a glass print surface
  • Build Platform: Metal / Glass
  • Aluminum frame
  • Weight: < 15kg
  • Dimensions (L, D, H): 380 X 400 X 500 mm
  • Slicing Support: Cloud Based
  • WiFi supported
  • Control unit is Android powered touchscreen tablet
  • Power Consumption Rating: 12V, 260W
  • Price: Rs. 100,000 (USD 1,610)

http://www.brahma3.com/


Mi3D Pro X9








Only information in video description is available for Mi3D Pro x9 3d printer:

  • Mi3D ProX9 for Industry Applications/Expert Designers
  • INDIA's First Double Extruder Printer
  • First printer to support print resume on powercut

Source:

http://www.youtube.com/channel/UCoaFfPE1-HFS7-gEZiftrBA?feature=watch

Gnublin 3D printer and pcb mill hybrid



This is a project of 3d printer and low cost PCB mill hybrid machine with user swapable printhead / mill.
Embedded projects is developing it and surveying the market need and if they should build it.

More details and market survey:
http://shop.embedded-projects.net/index.php?module=special&action=printer&lang=en






Video updates on Theta polar 3d printer

Theta printer has unique design, you can check the first post about it here:

http://diy3dprinting.blogspot.com/2013/11/theta-printer-4-extruder-polar-3d.html

Here are some videos that show how the printer construction is progressing:




Simultaneous printing on Theta. The blue plastic is PLA and the yellow is ABS.



Two extruders printing on the same object at the same time.




Videos by Tyler Anderson

All files are at GitHub:

https://github.com/unlimitedbacon/Theta-Printer

Theta printer project blog:

http://csulbmae472group7.weebly.com/


First print results in PLA and ABS at the same time on same object



























Update (12.1.2014.):

here is a new video and successful print of the iconic Octopus:

From video description:
Testing the new firmware by printing an octopus. This print took about 1.5 hours with a feedrate of 20 °/s. In this case, thats roughly 55 mm/s. This printer should be capable of at least 40 °/s.































Update (21.8.2014.):

Theta was submitted for Hackaday prize contest:




Fully 3d printed speaker from Cornell's Creative Machines Lab

Speaker was fully 3d printed including metal coil at Cornell's Creative Machines Lab by Apoorva, Robert MacCurdy and Hod Lipson. To make it printable, the electronic components are made with two customizable 3D printers: a special silver ink extrusion is used for the coil and a viscous blend of strontium ferrite is used for the magnet.
It's the future people. We just need to get more synergy and merging of 3d printed plastic and 3d printed electronics.
I hope that projects that could empower every maker to print similar speakers like Spoolhead wire embedding 3d printhead RepRap will be revived and improved. http://diy3dprinting.blogspot.com/2013/09/embedding-metal-wire-in-3d-printed.html











Source:

http://www.news.cornell.edu/stories/2013/12/fully-functional-loudspeaker-3-d-printed

Update:

Josef Prusa also developed 3d printed speaker:

http://diy3dprinting.blogspot.com/2014/01/josef-prusa-also-3d-printed-working.html

Update (29.4.2014.):

Disney Research presented interactive 3d printable embedded speakers:

http://diy3dprinting.blogspot.com/2014/04/3d-printed-interactive-speakers-by.html

Geoweaver walking hexabot 3d printer

Geoweaver is hexabot walking robot made from lasercut and 3d printed parts that has glue gun extruder attached for printing on walking surface. IT IS A FREAKING WALKING SPIDER ROBOT 3D PRINTER!!!!! AND YOU CAN BUILD IT YOURSELF!!!
very cool ...
It is not highest quality of 3d print and it has some limitations, but this concept could be developed in the future. You could have several in your home that could print different furniture and recycle it every day ... or swarms printing buildings ...



Very detailed information with full build instructions and all the files:

http://www.instructables.com/id/Geoweaver-Walking-3D-Printing-Hexapod/?ALLSTEPS

From Instructables description:

Geoweaver is a student designed robot created in the Creative Architecture Machines advanced options studio at the California College of the Arts (CCA) in San Francisco, California, taught by Jason Kelly Johnson of Future Cities Lab and Michael Shiloh. The design is based on a 12-servo hexapod with a glue gun extruder attached, and is the culmination of about 60 days of research and prototyping. Although the robot's official name is Geoweaver, it also goes by many aliases: Servo Killer, Eater of Shields, Melter of Wires, and Destroyer of Regulators, among many others. It is a very difficult and delicate machine, and is not a project to be tackled for the faint of heart.
But if you do take it upon yourself to accept it's challenges, it's rewards are great: it is a six-legged, walking 3D printer. The center mechanism uses two servos to control the pendulum-like extruder head, allowing it to cover a basic XY plane (though curved to the surface of a sphere, see video above), and one servo for the extrusion gear that forces the glue-sticks through the "print head." All of this can be controlled through the software Rhino 5, with the plug-ins Grasshopper and Firefly

it was designed and made by Student Team: Jia Wu, Jeffrey M. Maeshiro, Mary H. Sek at CCA - California College of the Arts Architecture Advanced Options Studio, Prof. Jason Kelly Johnson with Michael Shiloh

Update:

As several commentators on G+ and Reddit noted, they are like puppies pooping ... ;-)































Update (22.2.2014.):

here is a video of small robotic "ants" or "termites" building structures. If you combine these two technologies, some interesting synergies could emerge.


Fusematic 3d printer









From Fusematic page:

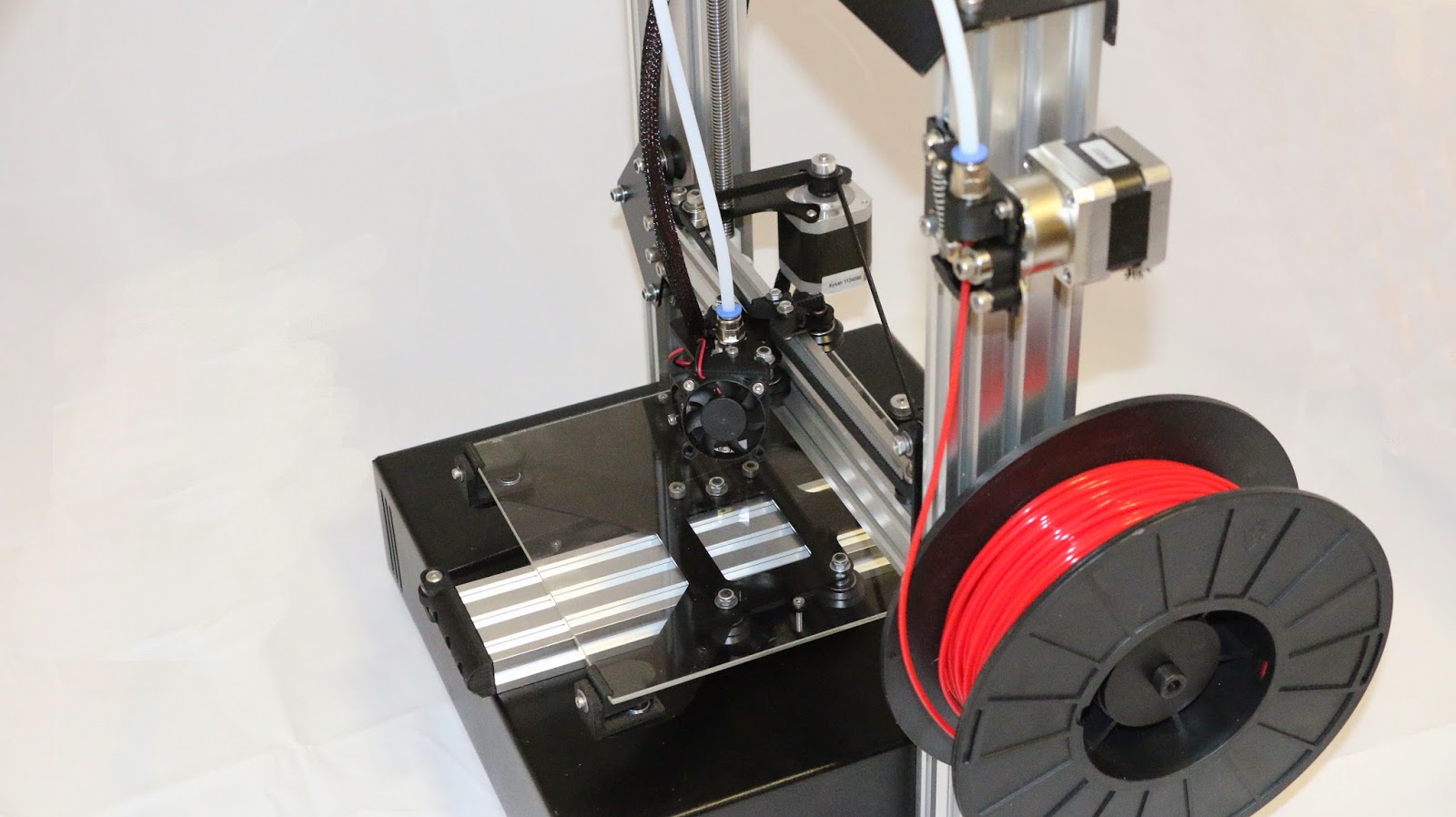

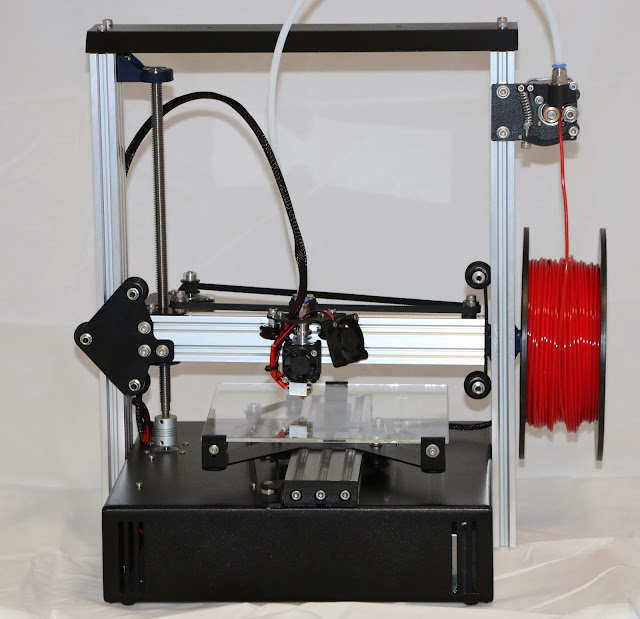

Meet the next generation of Maker’s Tool Works 3D printers. The Fusematic 3D printer is smaller, faster, and more affordable than the MendelMax 2, but made with the same commitment to quality that you have come to expect from MTW.
The Fusematic 3D printer was designed from the ground up for simplicity and reliability. A low part count, linear rails on all axes, and high-reliability electronics are just a few of the elements that set the Fusematic apart. And the electronics are all fully enclosed inside the base, making the Fusematic an excellent choice for schools and office environments.
Faster, Easier Assembly
The machined case with integrated assembly guides makes alignment easy.
Linear rails on all axes.
Preassembled print controller with a pre-configured downloadable firmware for nearly plug-and-play electronics
Keyed connectors prevent the most common electronic problems like shorts and assembly errors, and integrated fuses prevent serious damage in the event something still goes wrong.
Improved Design
The Fusematic 3D printer’s electronics are fully enclosed, which greatly reduces the possibility of injury or electrical malfunction.
The Bowden-style extruder makes the Fusematic 3D printer’s carriage lighter, giving better print quality at higher speeds.
Tuning and calibration is easy and requires no special skills.
The included RAMBo control electronics have nearly foolproof assembly and legendary reliability.
Transportable
A user-added printable handle can be attached to the top plate to make it as easy as possible to transport.
The electronics are fully enclosed within the base, so there are fewer loose wires to snag during transport.
Rugged steel and aluminum construction.
Technical Specifications
  • Stylish black and silver components.
  • Build area: 200 x 225 x 200 mm, 8 x 9 x 8 inches
  • Full size of machine: 300 x 410 x 400 mm
  • Layer height: User-selectable, 100 – 300 microns
  • Print volume: 9000 cc, 576 cubic inches
  • PLA only with base version. PLA, ABS, and experimental materials like nylon and polycarbonate with the optional heated bed
  • Shipping weight: Approximately 22 lbs
  • Made in the USA with US and imported parts.
Fusematic 3d printer is priced at 799 USD.

http://www.makerstoolworks.com/fusematic-3d-printer/













Dec 25, 2013

Spherebot - 3d printable xmas balls robot plotter

Christmas is coming you dusted off your xmas tree and decorated it: everybody try to make it different, buying new decorations and balls of different colors. Well, if you are looking for something original, think of making your personalized balls with drawings and writings at will.
Here comes this machine: a printer, or better to say a plotter, which will draw with a marker on spheres at will, derived from models transformed into G-code files. The machine is easily doable with a few 3D printable pieces


You can build it yourself:

.stl files at:

http://www.thingiverse.com/thing:201052

Detailed build instructions and code:

http://www.open-electronics.org/spherebot-reloaded-customize-your-xmas/

Marry Xmas people!!!! HO  HO HO!





Cartesio 3d printer

Cartesio is sturdy 3d printer / desktop cnc design by Jos Scheepers with aluminum frame that you can buy or build yourself. It comes in two sizes: bigger Cartesio W and smaller Cartesio M.

Cartesio W description from the project page, it is priced at 2099 euro (Cartesio M is priced at 1699 euro):
The CartesioW V0.9 has a massive build volume of 400x200x200mm and comes standard with a 3D print extruder and a large Heated buildplatform
If you want other tools (engravers, plotters,...), please select them in the Tools catagory.
The Lead time for this product is currently : 3-6 weeks after payment has been received
We can also assemble Cartesio for you.
  • Cartesio is a feature rich profesional CNC router.
  • It supports a wide range of tools ig. 3D-print extruder and engraver.
  • It is possible to print multiple colors, or materials.
  • unique features :
  • quiet printing
  • very rigid build platform which does not move in X,Y direction.
  • high precision GTM (gantry tool movement)
  • automatic printhead cleaning
  • large build volume of 400x200x200mm (X,Y,Z) M(edium)
  • printable upgrades
  • optional engraving tool with software speed control
  • CDC (cable drag chains) cable protection

other features:
  • stand alone printing
  • moveable, due to its rigid design
  • prints small and large detailed objects
  • prints rigid construction elements
  • high speed printing






http://reprap.org/wiki/Cartesio

Project homepage:

http://www.mauk.cc/

Cartesio wiki and building instructions:

http://www.mauk.cc/service.html

You can alos find them on Thingivers under:

http://www.thingiverse.com/jos/designs

http://www.thingiverse.com/thing:21664




CartesioW and smaller CartesioM comparison

3d printer that prints figures in jello shots




From video description:
This is a close-up of my figures-in-jello-printing 3d-printer hack. Content of the shot glasses is jello (duh), printing fluid is a mixture of banana liquor, food colouring and starch to make it less viscose. Printer is made out of old cdrom drives

Source files:

http://spritesmods.com/jello3dprinter/jellopr.tgz

Buildlog:

http://spritesmods.com/?art=jello3dprinter

PORO-LAY new family of advanced properties filaments by Kai Parthy: LAY-FELT, LAY-TEKKKS, LAY-FOMM and GEL-LAY

New 3d printing filament family by Kai Parthy the PORO-LAY. The new filament family consists of four different filaments: LAY-FELT, LAY-TEKKKS, LAY-FOMM and GEL-LAY with different properties.




From description:

PORO-LAY line (4 filaments)
dedicated for:
LAY-FELT
• 3d-membranes
• filters
• semipermeables
• future cloth
• artificial paper
soft and
stiff fibres possible
note: the filament contain no microfibres !!!
LAY-FOMM
• micro-foam,
• sponges
• ink-reservoirs
• bio-cells
• elastics...
• bendable suits
• soft rubber-like (under Shore A10), different softness possible
GEL-LAY
• objects in water
• marine organism
flow simulation
• biomechanics
muscles
high porosity,
the object is very unstable
LAY-TEKKKS
• orientated fibres
• stacked fibres
• future cloths
• tissue
 Here is the post on BENDLAY filament:

http://diy3dprinting.blogspot.com/2013/06/bendlay-new-clear-and-bendable-3d.html

RepRap TK300 3d printer

TK300 by RockyShi is on Thingiverse now ... information may be limited, design looks sturdy, it is made with steel side plates and CNC aluminum connecting parts ...



























From Thingiverse description:
  • Ultimaker main board, will change to Rumba soon
  • dual DD2 extruders, direct driving
  • dual metal hotends E3D with cooling fans,Fast heat up
  • lcd controller
  • use prontface,cura or other opensource software
  • 1.75mm ABS or PLA filament
  • Fast change filament function
  • Steel cabinet for power supply and electronics
  • Borosilicate glass
  • Mk2a 300mm pcb heatbed with 24v,can reach 140 centigrade
  • building size 300*300*320mm
  • layer thickness 0.1-0.4mm
  • Steel side plates
  • CNC aluminum connecting parts
  • Modular packing

Dual extruder version:

http://www.thingiverse.com/thing:212131

Base version:

http://www.thingiverse.com/thing:212115


















CNN video on Contour Crafting 3d printing buildings

3d printing buildings is gaining mainstream attention ... Contour Crafting Berok Khoshnevis gives interview on CNN ...



First post on Contour Crafting 3d printed houses:

http://diy3dprinting.blogspot.com/2013/11/contour-crafting-3d-printing-houses-of.html


Looks like China now leads the field of 3d printed houses since they printed ten of them in one day:

http://diy3dprinting.blogspot.com/2014/04/new-videos-of-3d-printed-houses-from.html

Update from HYREL 3D





From video description:
Just in time for the 2013 Holidays, HYREL 3D changes the economics of 3D printing with a single, affordable machine.
Whether one of HYREL's Engines or Systems, all are able to fabricate multiple parts simultaneously.

What this means to you:
If it currently takes four hours for your 3D printer to print / fabricate a single part and you need four of the same parts, it will take at least 16 hours total with a single machine.
With a single HYREL Engine or System, your capacity to fabricate parts simultaneously on the same machine opens up the bottleneck, saves you time and valuable shop space.
So, if you need two, three, or four fabricated parts... or if you need a small production run of parts...
... or if you'd like to mix in other materials with our different extruder heads -- you can do it all on your HYREL.
Other Materials include:
Sugru, Clay, Porcelain, Precious Metal Clay (PMC), Silicone RTV, Play-Doh, Plasticines... and coming soon, Wax, Chocolate, Cheese, Peanut Butter... etc.
For the material in the video, we used four colors of ABS. Each of the Mk1 Extruders in the video have been tested and verified to fabricate parts with the following types of filament: ABS, PLA, Nylon, PET, & Rubber. More filaments are currently being tested and more will be certified as 3D printable with the Mk1s in early 2014.

Hyrel 3d homepage:

http://www.hyrel3d.com/

Here is a video describing the capabilities of Hyrel machines:



Dec 23, 2013

ShapeDo - community driven 3d model design and collaboration

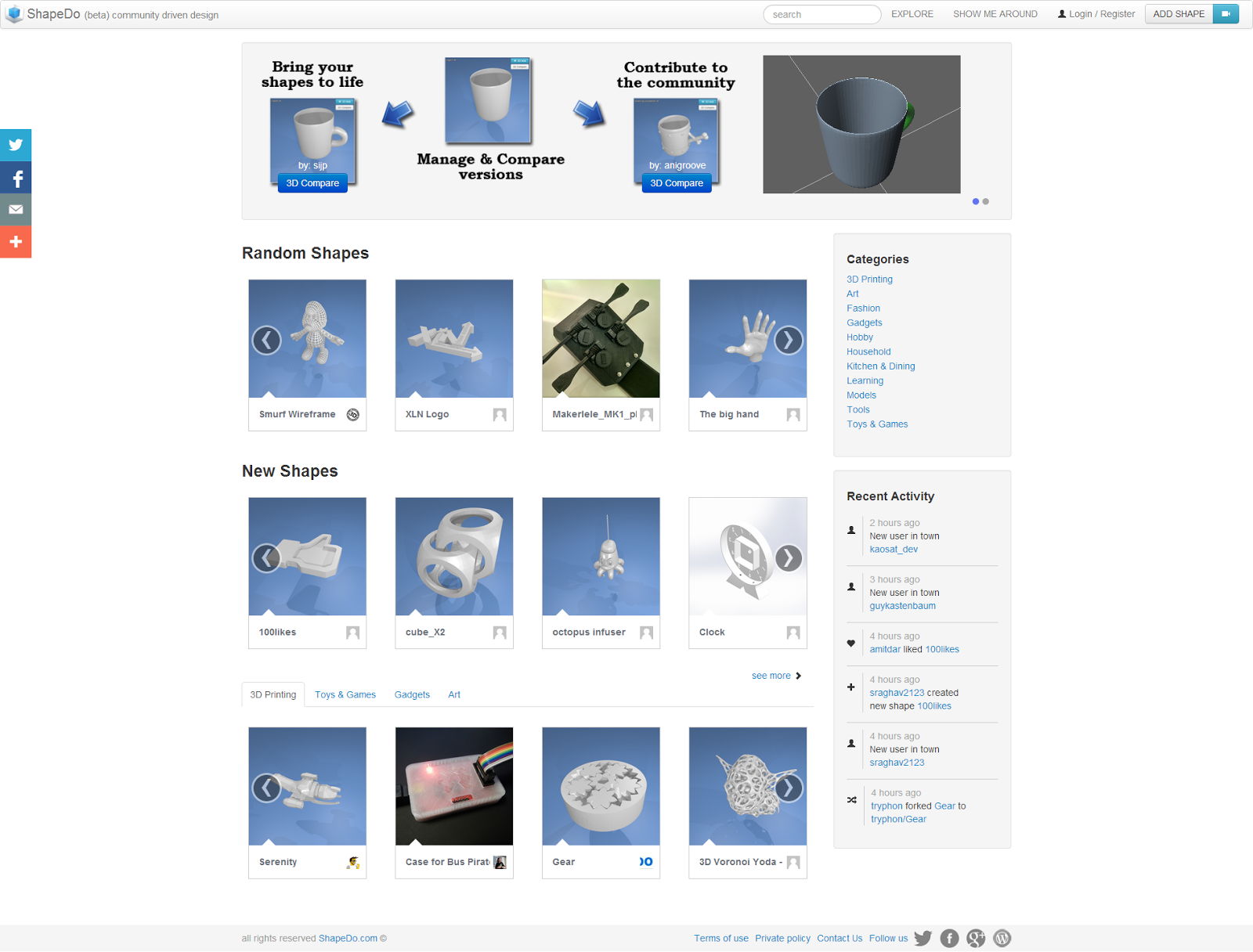

ShapeDo is new community driven 3d model design and collaboration website. It has some powerful and interesting features.

Video of collaboration features inside ShapeDo:



http://www.shapedo.com/



Cherry Pi Delta DIY 3D Printer by AndyCart

Deltas are everywhere ... here is new one by AndyCart ...

From Thingiverse description:
This is my own variant of a variety of 3D printer designs available. I have used ideas from Kossel, Delta Pi, 3DR and, of course, Rostock. Many thanks to the designers of those machines for their brilliant ideas that I have shamelessly 'Cherry Picked' hence the name of my design!
The rods on my printer are 277mm from steel ball centre to centre. The towers are 800mm Bosch/Rexroth aluminium extrusion and the base frame extrusions are 250mm long as are, obviously, the top frame extrusions. You need nine in all.
The bearing carriers use 6 623 10mm x 4mm x 3mm bearings and slide directly on the extrusion. Nut traps for M3 nuts are included in the carrier. The rods connect to the carrier with a plate that fastens with 3 M3 bolts, again nut traps are included. The rod carriers and the effector plate hold 10mm x 5mm countersunk, cylindrical rare earth magnets and my rod end balls are 8mm diameter. My rods are 5mm carbon tube but you could use 6mm aluminium. My rod end balls have a 10mm M5 threaded rod and are the type used for the ends of gas struts, etc. the idea of the seperate rod carriers was to enable different rod attachment methods but the magnets and balls have worked out fine for me.

http://www.thingiverse.com/thing:210028



Dec 21, 2013

BBC report on Foodini food 3d printer by Natural Machines




Company site, currently without any relevant information:

http://www.naturalmachines.com/

Update:

here are some news on Foodini:

http://diy3dprinting.blogspot.com/2014/01/aj-tv-report-on-foodini-food-3d-printer.html




3d printable asthma inhaler

Holly from England made this 3d printable asthma inhaler. Hopefully the design will be open sourced in the future.

From source blog:

My fully functioning asthma inhaler design for my uni project is 3d printed in ABS. I tried to work my design around ergonomics:

  • The back part is completely rounded to enable it to fit in your hand more comfortably
  • Flat parts on the side add for grip along with the slightly curved in front.
  • The smaller but longer mouthpiece is so you can fit it better into the mouth to better take the medication.
  • Another feature is that it glows in the dark so you can find it quickly at night or in your bag, unfortunately due to costs, the glow in the dark ABS filament is far too expensive for me to afford.






Source:

http://art-and-designs.tumblr.com/post/69717955925/3d-printed-inhaler

Also, check the previous post on custom baby asthma medicine nebulizer mask:

http://diy3dprinting.blogspot.com/2013/12/daily-3d-printing-custom-baby-mask-for.html

Solidus Labs Dogleg grounded delta robot (GDR) 3D Printer

Solidus Labs Dogleg GDR Delta 3d printer is interesting variation of RepRap Simpson. Information is limited, hopefully more will be available soon.




From video description:
First movements of our dogleg grounded delta robot(GDR) 3d printer. This is the first motion test using the delta marlin firmware on a gen 6 board controlled through printrun. The GDR idea is from the Simpson 3d printer but we utilize lead screw/worm gears for motion





Source:

http://www.youtube.com/channel/UCS9dnQROWtxe3Tqcf3pWnYQ?feature=watch

Update here:

http://diy3dprinting.blogspot.com/2014/01/developments-in-reprap-simpson-family.html





















Update 2:

Solidus Labs released single arm SAPE 3d printer PoC:

http://diy3dprinting.blogspot.com/2014/06/single-arm-sape-3d-printer-by-solidus.html

Medical prosthetic hand Vs. 3d printed prosthetic hand

Medical prosthetic hand price compared to DIY 3d printed prosthetic hand. The price difference is enormous. There are many many reasons for this ... maybe I'll make some sort of analysis in the future ...



































Update (21.4.2014.):

Here is a video comparison of DIY 3d printed hand and high tech prosthetic hand done by person born without hand after testing both:

http://diy3dprinting.blogspot.com/2014/04/diy-3d-printed-50-prosthetic-hand-vs.html


Dec 20, 2013

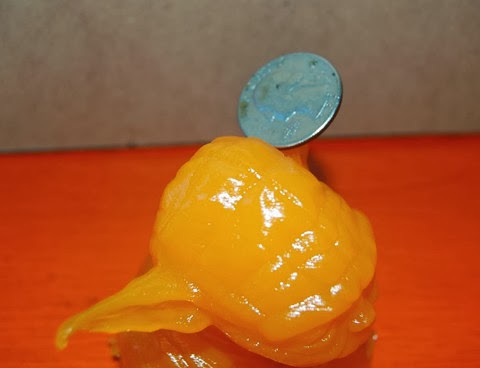

NOVA low cost DLP 3d printer from Taiwan

More DLPs are emerging. Prices are falling, 3d printing is moving forward ... Here is NOVA DLP from Taiwan ...

Technical specifications:
  • Build envelope: 100x70x150 mm (0.1mm precision)
  • Printer is able to harden a layer of 10x8 cm in 8-10 seconds without the typical moving heads that takes 30 seconds or more to finish
  • XY precision: 0.1mm
  • Z precision: 0.1mm
  • Software: Snapshot version 1.0
  • File print: STL
  • Machine size: 212x310x600 mm
  • Weight: 12kg
  • Operating temperature: 0°-32° C
  • AC input: 100-240V,~2A,50-60HZ
  • Data input: USB
  • Price: $999

http://twnova.myshopify.com/




Video of new 3d printed cruiser skateboard




From video description:
Tas Oszkay, Mo Harmon, and Jac Currie are graduate students at UCLA's school of Architecture and Urban Design who re-imagined skateboard product design using (http://www.solidconcepts.com/3d-print...) Solid Concepts' 3D Printing to manufacture an incredible board in one unit. Their board is an involved aesthetic dialogue between form and function. The design reveals heavy influences from the team's organic inspiration, Radiolaria. From a machining perspective, the complex mineral shell of radiolarians is nothing short of a nightmare. The patterns of the organism from under a microscope weave into each other, looking roughly similar to a dried up piece of sea reef. The team took the basic design of the silica skeletons unique to radiolarians and further complicated it through layering using CAD software.
Their board is self identified as a cruiser, meant for gracing the beach front or getting about campus. They think in the future they might look into trick boards; 3d Printing is a technology capable of being extremely light, and that would factor well into such a venture. But for now, they're experimenting with the more relaxed board.
Here is the post about first 3d printed skateboard project:

http://diy3dprinting.blogspot.com/2013/08/3d-printed-skateboard.html









Dec 19, 2013

3D Printer in Minecraft

Virtual 3d printers made inside popular indie Minecraft game that use in-game physics and building elements. They took a lot of time to develop and build. Kudos to you builders!





Update:

here is another one:




and another one ...




and another one ... with a 3d scanner ...

Printupy 3d printer by 2PrintBeta



From the Printupy product page:

http://www.2printbeta.de/product_info.php?products_id=253

This 3D printer is the quintessence of the state-of-the-art technology - a professional looking desktop accessory:
  • All 3 axes are independently controlled by stepper motor driven T2.5 belts which guarantees highest printing precision
  • Rigid aluminium frame
  • Screw-on linear bearings for extra precision
  • Core: A autonomous Echinus Board with SD-card-slot and an elegant Echinus Vision contoller
  • A precisely manufactured 3D printhead type J-Head (with in-house modifications)
  • Integrated heated printbed
  • Integrated power supply
  • Lasercut acrylic glass housing
  • CNC made gears
  • 3 optical endstops for highest calibration accuracy of the printing origin
  • All wires disappear inside the smooth acrylic housing
  • USB stick with clearly presented manual and pre-configured software

Technical data:
  • LxWxH: 420mm x 420mm x 700mm
  • huge printing dimensions: 200mm x 200mm x 220mm (X,Y,Z)
  • Filament diameter: 3mm
  • Materials: PLA, soft-PLA, ABS, Laywoo-D3
  • Maximal print speed: 100 mm/s
  • Minimal layer thickness: 50 ┬Ám
  • Nozzle orifices: 0.5mm, 0.35mm and 0.25mm
  • Weight: 12kg
  • Powersupply: AC 230V, 50-60 Hz
  • Supported file format: STL (stereo lithography)
  • Input: direktly via USB or independent from the PC with a SD-card
  • Price: 1200 euro for single extruder version, 1500 euro for dual extruder version

Advantages of a timing belt driven Z-axis:
Most 3D printer systems use a lead screw or a threaded rod as drive for the Z-axis. Backlash and imbalance cause errors in X- and Y-direction when moving the Z-axis. These errors are visible as vertical pattern on the printed object.
When using two timing belts as attachment for the Z-axis these errors can cleverly be avoided. Consequently the Z-axis is nearly error free, thus the layers of a printed object lie perfectly on top of each other.

There will be single and dual extruder versions, currently they are on pre-order: First delivery in February 2014.

Video of the early beta prototype:




Here is a new video of Printupy production model in action:


Interesting video about 3D printed food

Interesting Google hangout talk from Food Makers about 3d printed food featuring Modern Meadow CEO Andras Forgacs and Fab@Home project lead Jeffrey Lipton.



LulzBot TAZ 3 3D Printer

New improved version of Lulzbot TAZ. The TAZ 3.0 now comes with a graphic LCD controller for printing directly from an SD card. The graphic LCD controller has the ability to perform print start up, print selection, and configuration changes.
It also features injection molded parts and a redesigned 24v heat bed which means that the printer has a much faster heat time. It can now print with more than just ABS, PLA, PVA, high-impact polystyrene, or a wood filament, with add-ons it can print with materials like nylon or polycarbonate.







Technical specifications:

Printing
  • Print Area: 298mm x 275mm x 250mm (11.7in x 10.8in x 9.8in)
  • Print Volume: 20,500cm3 (1,238 in3) of usable space
  • Top Print Speed: 200mm/sec (7.9in/sec)
  • Layer Thickness: 0.075mm – 0.35mm (0.003in – 0.0138in)
  • Usable Filament Sizes: Standard 3mm (0.1in)
  • Overall Dimensions: 680mm x 520mm x 515mm (26.8in x 20.5in x 20.3in)
  • Weight: 11kg (24.25lbs)
  • Electrical Power Requirements: 110 – 240 VAC
Software
  • Marlin firmware
  • Slic3r G-Code generator
  • Pronterface host software
The Taz 3.0 is priced at $2,195.

https://www.lulzbot.com/products/lulzbot-taz-3-3d-printer

If you want to see behind-the-scenes Lulzbot factory tour and more about open source hardware, take a look at:

http://diy3dprinting.blogspot.com/2014/02/lulzbot-factory-tour-and-open-hardware.html


Update (5.5.2014.):

TAZ 4 is now the new model:

http://diy3dprinting.blogspot.com/2014/05/lulzbot-taz-4-3d-printer-just-released.html


Zinter™ PRO 3D Printer

Ion Core Technology releases Zinter Pro 3d printer. It looks sleek and high quality in aluminum and it has fully closed build chamber.





















From product page:
Zinter™...it's a printer with a Z axis
Zinter™ PRO is the breakthrough high accuracy, full featured desktop 3D printer from Ion Core Ltd and true out-the-box experience.
The Zinter™ Pro is fitted with two extruders. This means the ability to print with two materials or two colours as part of a single model. Zinter's enclosed environment and heated build platform ensure prints are shielded from external condition changes for perfect prints every time.
Superior build quality and aesthetics coupled with our leading software means the British made Zinter™ Pro is not only the most accurate and full featured desktop 3D printer on the market, but its the best looking too!

Technical Specification:
  • Print Technology: Fused Filament Fabrication
  • Build Volume: 200mm x 200mm x 200mm
  • Heated Bed: Yes
  • Filament Diameter: 1.75mm
  • Number of Extruders: 2
  • Nozzle Diameter: 2 x 0.4mm
  • Print Materials: ABS, PLA, Nylon, PVA, PC
  • Connectivity: Standalone SD card and USB cable
  • Movement: Patented linear rails and carriages
  • Chassis: Aluminium framework, stainless steel bands and plastic panelling
  • Build Surface: Heat Glass
  • CE Mark: Safety Tested and Approved
  • priced at £2,350 (€2,800 / $3,850) with 10 week lead time


The company also plans to launch ZintShare 3d printfiles sharing platform in February 2014. We will see how it develops.


They deliver the printer with their custom software "Simplify 3D":



Da Vinci 1.0 3d printer by XYZ Printing: introduction, reviews, cartridge hacking and repair

New day, new low cost printer from Asia. The bad thing about many new devices as this one, in my opinion, is that it uses some sort of custom cartridges (update: the cartridges can be hacked now and counter reset: look below)  and custom software. But on other hand, some people like that.







Da Vinci 1.0 technical specifications
  • Technology: FFF (FUSED FILAMENT FABRICATION)
  • Maximum build volume (WxHxD): 7.8W X 7.8H X 7.8D INCH (20 X 20 X 20 CM)
  • Printing Mode: FINE: 0.1 MM (100 MICRONS); STD: 0.2 MM (200 MICRONS); SPEED: 0.3 MM (300 MICRONS); ULTRA FAST: 0.4 MM (400 MICRONS)
  • Print Head: SINGLE NOZZLE (dual extruder models are announced by the company in the future)
  • Nozzle Diameter: 0.4 MM
  • Print Speed: 150 MM/s
  • Filament Diameter: 1.75 MM
  • Print Material: ABS
  • Panel Type: 4 X 16 LCM
  • Language: ENGLISH, JAPANESE
  • Connectivity: USB 2.0
  • Net Weight (Cartridges included): 51.9 IB/23.5 KG
  • Price: 499 USD
  • File Types: .stl, G code, XYZ Format
  • OS Supports: Windows XP (.Net 4.0 required), Windows 7+, Mac OSX 10.8 64-bit +
http://www.xyzprinting.com/

Update:

Here are they on CES 2014



Update 2:

da Vinci 2.0 and 2.1 are announced:

http://diy3dprinting.blogspot.com/2014/04/da-vinci-20-and-21-3d-printers-announced.html

Update 3:

Here is a full review of Da Vinci 1.0:




Update 4:

da Vinci proprietary filament can be reset and cheaper common standard filament used with cartridges and make the daily operation much cheaper. Here are tutorials, guides and software used for the procedure.

Arduino EEPROM reset:

http://voltivo.com/blog/da-vinci-reset-eeprom

http://www.instructables.com/id/Da-Vinci-10-Filament-Reset/?ALLSTEPS

Here is a reset solution and reseter kits you can buy for some 40 USD: http://wctek.com/xyz/

Is it legal? Is it copyright violation? Does it void guarantee? I don't have a clue ...

LATEST VERSION HACKED: http://www.wb6cqa.com/2016/01/hacking-xyz-davinci-jr.html

Update 5:

Da Vinci announced that hey will start to sell cheaper user replaceable ABS refill filament for their custom cartridges. It will be their filament and they will deliver it with a chip enabling the printer to recognize new spool. The refill will be sold in 25 - 27 USD range for 600g.
The company also announced that they will start to sell PLA filament also.

Here is the product page: http://us.xyzprinting.com/us_en/Product/ABS

Here is the how-to video:




Video guide on how to replace the nozzle / extruder / printhead on da Vinci 1.0:




Dec 18, 2013

Think and Have DIY 3D printer




























think&have 3D printer is simple and durable 3D Printer, developed in Hamburg, Germany, based on RepRap Wallace (http://www.thingiverse.com/thing:18829), using two base parts from Printrbot (http://www.thingiverse.com/thing:16990).

The improvements are:
  • bowden extruder for less moved masses,
  • special kevlar line drives (no belts) for x and y,
  • metric design,
  • only few vitamins,
  • easy adjustable bed,
  • alloy / steel bed for fast heating and good heat dissipation
  • more stability on y and z motor mounts
think&have 3D printer Thingiverse page:

Objects printed with think&have 3d printer

DIY Archery with 3d printer - various accesories

Archery is great field for using 3d printers. Many things can be produced, repaired and replaced. Here are some:

DIY Arrow Nock





http://www.thingiverse.com/thing:203761


DIY Arrow Fletch Protector / Straightener







DIY Arrow Accessories Box






All projects are by Mirran
