3D Printable Raspberry Pi Digital Microscope

If you need a simple DIY microscope for your workshop here is a great project by Brauns CNC.

Experimental Large Volume Resin 3D Printer by Element14

Cool DIY Robot Rover by Saral Tayal

Instructables page:

https://www.instructables.com/id/Object-Finding-Personal-Assistant-Robot-Ft-Raspber/

Four Cool CNC Projects - from Small to BIG

Here are a few interesting CNC projects starting from small ones, like RasPi case, to big and complex ones, like a full DIY staircase.

Adafruit RasPi case:

Project page: https://learn.adafruit.com/wood-case-for-raspberry-pi-3/overview

MakeSomething  DIY Epipfone guitar body:

HomeMadeModern full wood cofee table made on a big industrial multiaxis CNC:

... and a full size DIY spiral staricase made from stacked CNC cut plywood sheets:

Replace broken optical drive with RasPi on 3D printable tray

Ollie242 replaced an broken old ThinkPad optical drive with 3D printable tray holding a RasPi. It connectes to the notebook with internal wiring.

Detailed build guide: https://www.instructables.com/id/Re-purpose-Optical-Drive-With-RPi/

ZeroBot is a 3D printable FPV robot based on Raspberry Pi Zero

ZeroBot is a cool little 3d printable robot that is cheap and easy to make. Great for educational robotic projects. You can control it via the smartphone interface and all the software is available as SD card image. I'm making this!!!




Project description:

ZeroBot is a Raspberry Pi Zero W based robot. It can be controlled using any computer or smartphone via a web browser. The integrated camera module makes for a low latency video stream. In addition, the Raspberry Pi acts as a Wifi access point, so no router is required. The parts for the hull as well as the wheels can easily be printed on any regular 3D printer.

Some of the key features are:

• Compact CAD design with 3D printed components

• Analog control via a joystick (and multitouch)

• Simple battery solution using only a standard power bank

• Low latency streaming (~0.3s)

• Easy and cheap to build using widely available components

Thingiverse page:

https://www.thingiverse.com/thing:2352440

Hackaday.io page:

https://hackaday.io/project/25092-zerobot-raspberry-pi-zero-fpv-robot

THERO project

THERO is a privacy project developed by Román Torre and Ángeles Angulo, that uses a Raspberry Pi with TOR routing. By moving the front panel you change your connection to the external Internet and your privacy.
It uses 3d printing to make the full enclosure and mold for the concrete encased version.


Here are two videos showing how the project was developed:








Source:

http://3dadept.com/manage-your-online-privacy-with-thero-a-3d-printed-desktop-device/

Project homepage (in Spanish):

http://www.romantorre.net/portfolio-item/thero/

3D Printed Car Navigation based on Raspberry Pi

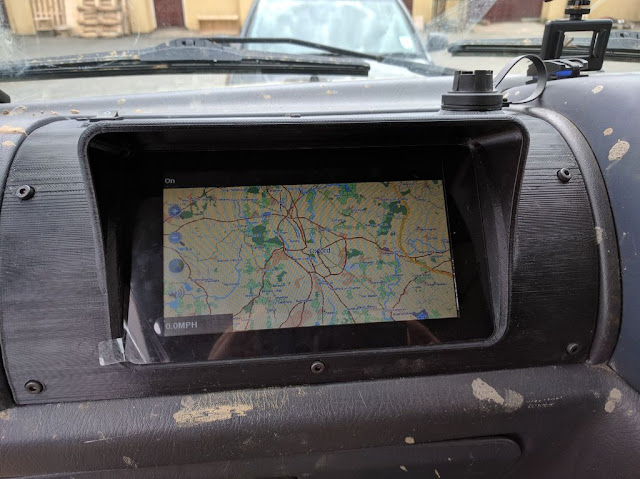

Greg Holloway made a car navigation system based on Raspberry Pi and 7 inch screen that is held by 3d printed dashboard structure. It was printed on E3D BigBox machine with the help of SpoolWorks scaffold soluble support material.
The car is Suzuki Jimny. Software used is open source Navit.

Detailed step-by-step construction guide can be found at:

http://www.instructables.com/id/3D-Printed-In-Dash-GPS-Navigation-Raspberry-Pi-3/

Thingiverse page for the files:

https://www.thingiverse.com/thing:1701583

Reiner Schmidt shows his 3d printed 6 axis DIY robotic arm

Reiner Schmidt shows his 3d printed six axis DIY robot arm. It is based on heavily modified open source Moveo by BCN3D mixed with THOR and powered by Raspberry Pi 3.

3D Printable Astrophotography with RasPi Zero

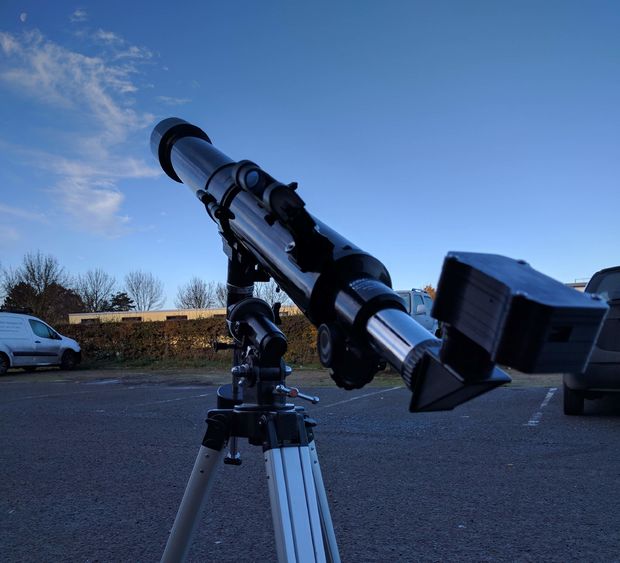

If you are interested in astrophotography and you want to make a low cost DIY setup here is a great project. Greg Holloway developed a Raspberry Pi Zero based wireless camera for a 1.25" telescope eyepiece receptacle with 3d printed casing. It is battery powered so you can take it in the wilderness to observe the stars.

Full project description, all the files and software can be found at:

http://www.instructables.com/id/Astrophotography-With-the-Raspberry-Pi-Zero/?ALLSTEPS

https://www.thingiverse.com/thing:1892757

He also developed a 3d printable solar filter case:

https://www.thingiverse.com/thing:1904985

3D Printable Smart Glasses based on Raspberry Pi Zero

Ricard Ferro developed the DIY smart glasses based on Raspberry Pi Zero. They have a 3d printed frame that holds everything together.  Interesting project with many possible applications, hopefully it will be developed further and get a community of contributors.

Here is a video showing OCR recognition:




Project description:

At a lose for words? Can't describe an object? PiZero SmartGlass can help you with that by using image recognition tech. Make your own smart glasses easily with the Raspberry Pi Zero! Affordable and easy to build, retro-wearable 3D Virtual Stereo Digital Video glasses are around $75 along with the Pi Zero. This display uses composite video to connect the Pi Zero's video out pins and are easily customized. There are many applications for image recognition, which allows computers to translate written text into digital text. The PiGlasses can help with the field of machine vision, recognizing people and objects. Add a battery pack and your PiGlasses are ready to go!

Project pages:

https://hackaday.io/project/13332-raspberry-pi-zero-smart-glass

http://www.thingiverse.com/thing:1654678

MADspace Advanced Robotics System 3D Printable Rover

The MADspace Advanced Robotics System (M.A.R.S.) rover is a 3D printable space exploration rover. It can be used in education, DIY science and development.

Key features:

• 6 driven wheels of which 4 can steer (pod wheels)
• Rocker bogie suspension (semi-active, 2 shoulder servos)
• Gyroscope
• 16 channel I2C PWM driver
• Raspberry Pi
• 2 logitech c270 webcams with pan/tilt
• Web interface written in web.py
• Two 10Ah 5V battery packs, one for drive and one for logic.

Here is the video of first rover movements:



Project homepage with all the parts and instructions:

https://www.wevolver.com/wevolver.staff/m.a.r.s./main/description/

MARS was developed in Eindhoven MADspace by:

• Paul Wagener (lead software)
• Tom Geelen (Embedded control and mathematics)
• Serdar Yildirim (all round)
• Guus van der Sluijs (Project leader and lead mechanical)

Easy WiFi 3D Printer sharing with Microsoft IoT Core

I'm not a Microsoft fan but it looks like their IoT Core on a Raspberry Pi can get easy WiFi connectivity and network sharing for many popular 3D printers with simple app install.

Here is the video explaining the setup:




It currently supports the following printers:

• Lulzbot Taz 6
• Makergear M2
• Printrbot Play, Plus and Simple
• Prusa i3 and i3 Mk2
• Ultimaker Original and Original+
• Ultimaker 2 and 2+
• Ultimaker 2 Extended and Extended+

... but more will surely be added in the future ...

Get all the information needed to do it yourself at:

https://developer.microsoft.com/en-us/windows/iot/Docs/3DPrintServer.htm

or

https://blogs.windows.com/buildingapps/2016/05/20/network-3d-printing-with-windows-10-iot-core/

Raspberry Pi Zero 5$ Computer for Your Next 3D Printing Project

Raspberry Pi foundation released 5 USD computer: the Pi Zero. Yes, it is truly revolutionary at 5 dollars. It will certainly find many applications in DIY projects and 3d printers.

Here are the video introductions:








More detailed Adafruit overview:





Raspberry Zero tech specs:

• A Broadcom BCM2835 application processor
• 1GHz ARM11 core (40% faster than Raspberry Pi 1)
• 512MB of LPDDR2 SDRAM
• A micro-SD card slot
• A mini-HDMI socket for 1080p60 video output
• Micro-USB sockets for data and power
• An unpopulated 40-pin GPIO header
• Identical pinout to Model A+/B+/2B
• An unpopulated composite video header
• smallest ever form factor at 65mm x 30mm x 5mm

Zero homepage:

https://www.raspberrypi.org/blog/raspberry-pi-zero/

Here is the Adafruit step-by-step guide on how to design 3d printable enclosure for the Zero:




... and here are more details on how to test and 3d print the enclosure:




You can download the file HERE,

Here is the first Raspberry Pi Zero hack adding a wifi module on it:

http://hackaday.com/2015/11/28/first-raspberry-pi-zero-hack-piggy-back-wifi/

You can add an ethernet port:

http://raspi.tv/2015/ethernet-on-pi-zero-how-to-put-an-ethernet-port-on-your-pi

...or audio output:

https://learn.adafruit.com/adding-basic-audio-ouput-to-raspberry-pi-zero?view=all

... and here is the more detailed review by Hackaday showing some problems and disadvantages:

http://hackaday.com/2015/12/01/raspberry-pi-zero-or-minus-one/


Things have truly changed trough the time...

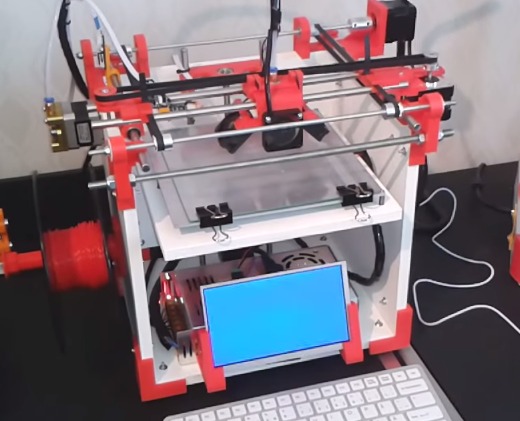

Funbot Pro all-in-one DIY 3d printer

Cliff Mellangård, Swedish 3d printing guru and creator of excellent low cost Funbot 3d printer is developing an all-in-one DIY RepRap based on Raspberry Pi 2. It has a 7 inch LCD screen and when you connect external keyboard and mouse you have a full 3d printing workstation in one machine.

Here is the Funbot Pro presentation video:




Nice work Cliff! Files for it will be probably available soon since it is still in early development stages.

Update:

Here is the first real print of FunBot Pro with further details explained by Cliff:

How to remotly control ATX power supply modes with Raspberry Pi and OctoPrint

Standard ATX power supply unites are widely used to give electricity to 3d printers. Instructables user "mfoster" published a very useful tutorial on how to use RasPi and Octoprint to remotely control ATX power supply and enable you to put it in different power modes like standby mode.
The hack is easy to perform even by novice users, you need do use some code and conect some wires from Raspberry Pi GPIOs to ATX wiring.

Detailed instructions and the code can be found here:

http://www.instructables.com/id/Using-the-Raspberry-Pi-to-control-an-ATX-power-sup/

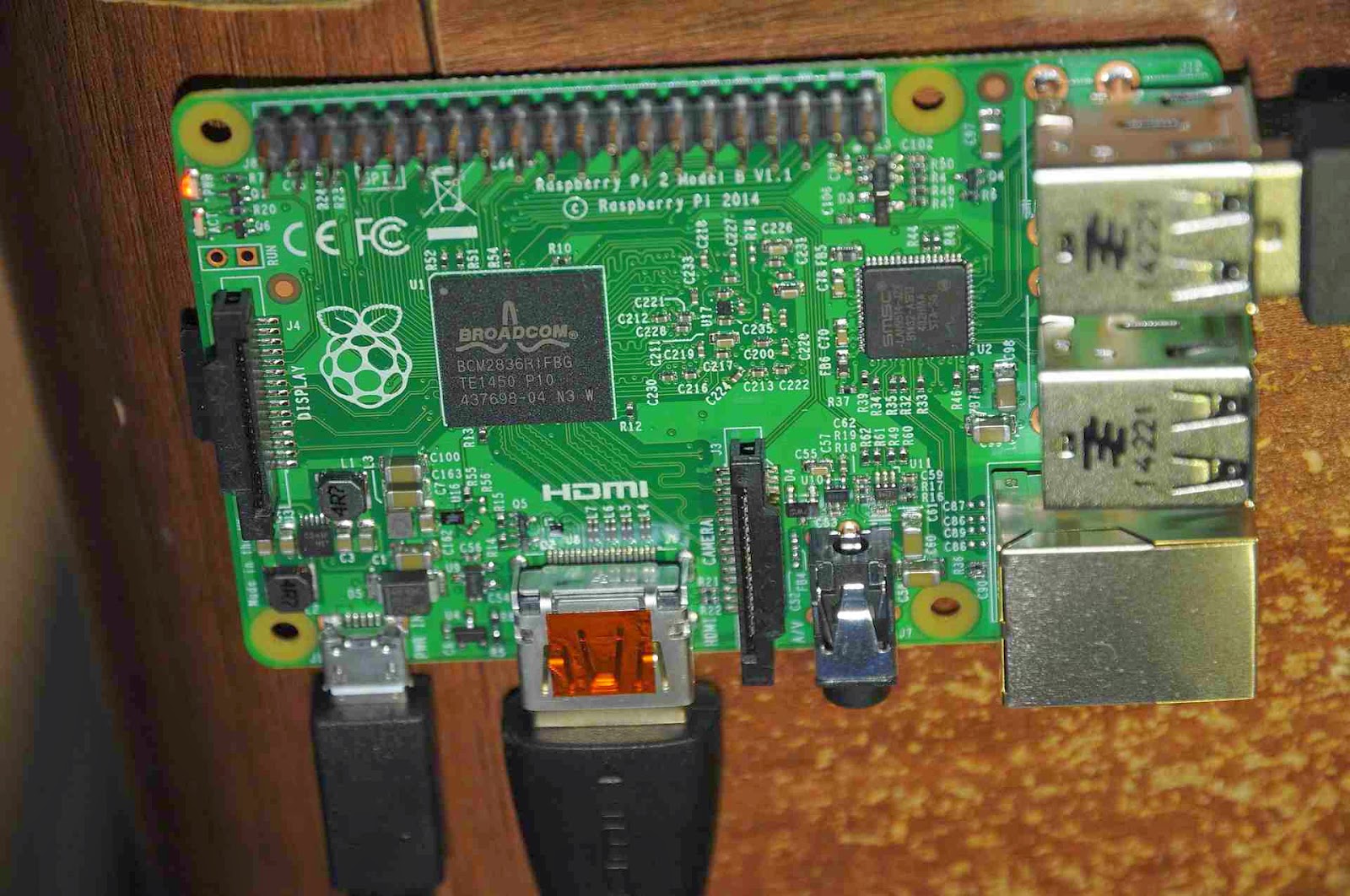

Raspberry Pi 2 released with much more processing power for same price

Raspberry Pi 2 is out! It is much more powerful for the same price of a previous model (35 USD). The tests show that it's up to six times faster as the old version. There will be some nice and fast 3d printing projects running on this one!

Technical specifications:

•  900MHz quad-core ARM Cortex-A7 CPU
• 1GB RAM

Like the (Pi 1) Model B+, it also has:

• 4 USB ports
• 40 GPIO pins
• Full HDMI port
• Ethernet port
• Combined 3.5mm audio jack and composite video
• Camera interface (CSI)
• Display interface (DSI)
• Micro SD card slot
• VideoCore IV 3D graphics core
• OS: full range of ARM GNU Linux distributions, including Snappy Ubuntu Core, as well as Microsoft Windows 10

Here is Make with video overview of new Pi:




... and here is a full in-depth review of the Raspberry Pi 2:



It even has a glitch, it crashes when exposed to a photo flash light:




I think it has the same form factor as the older model:

Source: Wikipedia

UberBlox construction modules for your home manufacturing machines

UberBlox are modular building blocks for any type of machine ranging from wheeled robot to CNC mill. You can create anything you want.

Pick and Place delta robot made with UberBlox

UberBlox description from the company page:

UberBlox is a new high-quality metal construction set and prototyping system for makers to build rigid structures and automated machines.

At the heart of the system is a new single-connector locking mechanism which uses a common small tool to quickly and precisely lock each block to the next. The firmly connected blocks provide accurate, strong and rigid frames for a wide variety of structures and complex machines such as robots, CNC machines and 3D printers.

In addition to the basic blocks, the system includes a growing catalog of compatible and reconfigurable parts, including moving components, sub-assemblies, motors, electronics and controllers based on popular boards such as Arduino and Raspberry Pi, for a complete solution to the building needs of today's sophisticated maker.

Here is short video overview of UberBlox:



UberBlox homepage: https://uberblox.com/

They will be on KickStarter soon ...

Photon Elephant Raspberry Pi based OS for your 3d printer

Photo Elephant is new Raspberry Pi based software product that will control your 3d printer via GPIOs. You can get your copy for 75 USD.

Here is the presentation:



they are on Kickstarter now:

https://www.kickstarter.com/projects/photonelephant/photon-elephant-a-real-os-for-your-3d-printer

Photon Elephant homepage: http://photonelephant.com/

DIY 3d printed water cooler block for small electronics

Instructables user Unprecedented developed a useful little 3d printable cooling block for his Raspberry Pi. It holds a copper penny on the bottom as contact to hot chip and it has plastic tubing taking in cool and taking out hot water and thus cooling the chip.

It can be used on variety of electronic parts with Raspberry Pi and other small computers being the obvious choice if you are into overclocking. Water cooling is silent and can take away large amount of excess heat. It goes without saying, if the water leaks out it will badly damage your electronics.
You could also use 3d printed peristaltic pump to push the water or just have it stream from faucet ...

It would be interesting to see how much could the design be enlarged ...

3d printed cooling block attached to a Raspberry Pi. Copper penny is on the bottom touching the chip ...

You can find all the instructions and files to make it yourself at:

http://www.instructables.com/id/Raspberry-Pi-Water-Cooler/?ALLSTEPS

Here is a video of heat conductivity test:
